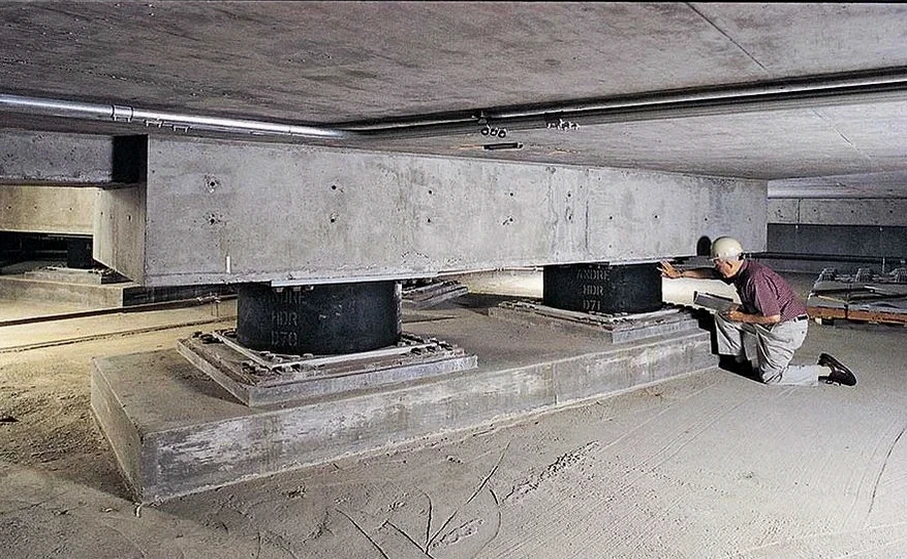

Cheyenne sits at 6,062 feet on the High Plains, where the ground can shake differently than in coastal cities. The 1882 earthquake near the Colorado border—estimated at magnitude 6.6—reminded engineers that the Intermountain Seismic Belt doesn't stop at state lines. For essential facilities like the Cheyenne Regional Medical Center or Laramie County emergency operations buildings, a seismic microzonation study often precedes isolation design work. Our team applies ASCE 7-22 Chapter 17 to model the isolator response at this elevation, accounting for how thinner air affects elastomer aging in the bearings. We've seen how Cheyenne's expansive clay layers, which swell and shrink with seasonal moisture, complicate the foundation interface below isolation planes.
A properly tuned isolation system in Cheyenne can cut spectral acceleration demands by 60 to 80 percent compared to a fixed-base design—that's the difference between operational recovery and demolition.
Local ground factors
ASCE 7-22 Section 17.5.4 requires bounding analysis for upper- and lower-bound isolator properties, and in Cheyenne the temperature swing from -20°F to 95°F makes this non-negotiable. Lead-rubber bearings stiffen in cold weather—we've measured a 15% increase in effective stiffness at 0°F compared to 70°F in similar high-plains installations. If the engineer ignores temperature effects and models only nominal properties, the isolation period shortens, higher-mode participation increases, and floor accelerations in the superstructure can spike beyond what the nonstructural components were designed to handle. Another risk specific to this city: wind-driven snow accumulation inside unsealed moat covers can freeze into ice blocks that bridge the seismic gap, effectively locking the isolation system during a winter earthquake. We specify heated drain systems in the moat and require quarterly inspection of the isolation plane after any major snow event.
Quick answers
What does base isolation design cost for a project in Cheyenne?
For a mid-rise essential facility in the Cheyenne area, the structural design and analysis package for a base isolation system typically falls between US$3,850 and US$7,700. This covers nonlinear modeling, isolator specification, peer review coordination, and testing oversight. The final figure depends on the number of isolators, complexity of the superstructure, and whether the project is new construction or a retrofit requiring temporary shoring.
Does Cheyenne really need base isolation given its moderate seismicity?
Seismicity in Cheyenne is moderate, but the city hosts facilities where post-earthquake functionality is non-negotiable—hospitals, emergency dispatch centers, and data infrastructure. The Intermountain Seismic Belt can produce magnitude 6.5+ events, and the cost of downtime after even a moderate shake often exceeds the marginal cost of isolation. For critical buildings, the performance objective shifts from 'life safety' to 'immediate occupancy,' and isolation is the most reliable way to achieve that.
What kind of isolators work best in Wyoming's climate?
We specify lead-rubber bearings with a low-temperature elastomer compound rated to -30°F for Cheyenne applications. Friction pendulum systems also perform well in cold climates because the sliding surface is less sensitive to temperature than elastomer stiffness. The key is requiring temperature-aging tests during prototype qualification so the design properties account for the full seasonal range.
How do you verify the isolators will perform as designed before installation?
Every isolator undergoes production testing at the manufacturer's facility: compression stiffness, lateral force-displacement loops, and damping ratio. For the prototype batch—typically two full-size bearings—we run the full ASCE 7-22 §17.8 sequence: property verification at three displacement levels, aging and scragging effects, temperature variation from -20°F to 100°F, and ultimate displacement testing to 1.5 times the MCE demand. A licensed engineer witnesses the tests and signs the conformance report.
