Seismic Tomography (Refraction/Reflection) in Cheyenne: Seeing What Lies Beneath

Together, we solve the challenges of tomorrow.

LEARN MORE →

We see it all the time around Cheyenne: a contractor budgets for a straightforward excavation off I-25, only to hit a buried channel of weathered Sherman Granite that nobody anticipated. The ripper teeth bounce off, the schedule blows out by two weeks, and the change order eats the contingency. That headache is almost always preventable. Seismic tomography, both refraction and reflection, maps the transition from soil to rock before a single yard of material gets moved. When you know the depth to competent bedrock and the velocity structure of the overburden, you can plan earthwork quantities, select the right foundation type, and avoid the surprises that turn a profitable job into a loss. Our team runs these surveys across Laramie County on everything from commercial pads near the Capitol to wind farm access roads out east, and we deliver the kind of subsurface intelligence that makes estimators sleep better at night.

A tomographic velocity cross-section does what a drill log cannot: it shows you the continuous geometry of the weathering front between boreholes.

Our approach and scope

Cheyenne sits at roughly 6,062 feet above sea level on a high plains surface underlain by the Precambrian Sherman Granite, which weathers into a notoriously irregular profile. That weathering front can drop 15 feet across a 50-foot span, making the seismic velocity contrast between soil and rock the critical parameter for any deep foundation design. We use 24- and 48-channel seismographs with geophone spreads configured specifically for the site geometry, then process the first-arrival picks with tomographic inversion algorithms that produce a continuous 2D velocity cross-section. The output gives you iso-velocity contours tied to rippability classifications and IBC site class boundaries. When the granite is fresh and velocities exceed 8,000 feet per second, you know you are dealing with material that will require blasting or heavy pneumatic breakers. For the softer sedimentary interbeds of the Casper Formation found on the city's western edge, the velocity contrast is subtler and the interpretation benefits from combining refraction with a MASW survey to constrain the shear-wave velocity profile. In areas where a specific bedrock horizon must be tracked for excavation staging, a seismic refraction profile provides the depth control that drilling alone cannot match because of the high lateral variability.

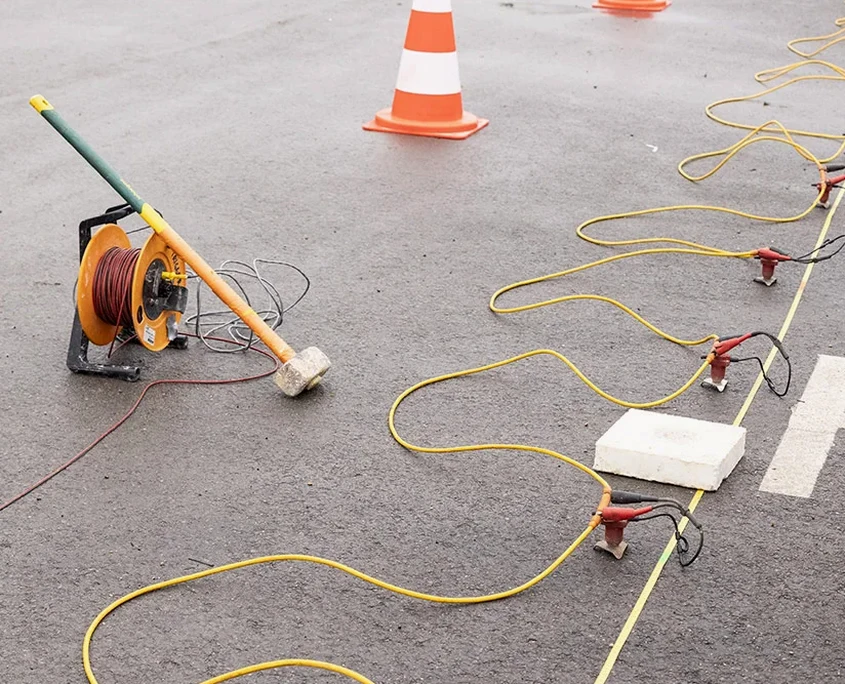

Seismic Tomography (Refraction/Reflection) in Cheyenne: Seeing What Lies Beneath
Technical reference image — Cheyenne

Local ground factors

The Sherman Granite surface beneath Cheyenne is not a flat plane; it is an ancient erosion landscape with knobs, troughs, and deep fracture zones that accelerate weathering. A single boring in a granite low can give you a false sense of deep overburden, while the real bearing surface is only a few feet away laterally. Reflection surveys catch these abrupt steps by imaging the acoustic impedance contrast at the soil-rock interface, mapping the topography of the bedrock surface even beneath 80 feet of cover. We have also encountered paleochannels filled with saturated silty sand in the Belvoir Ranch area where the water table sits within 15 feet of grade. That combination of loose saturated soil and shallow groundwater flags a liquefaction concern under the Cheyenne seismic hazard, which is driven by the proximity of the East Sherman and Borie faults. Seismic tomography provides the velocity data needed for a liquefaction assessment that meets Wyoming State Geological Survey review standards.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering.sbs

Typical values

ParameterTypical value
MethodP-wave refraction (tomographic inversion)
Seismograph channels24 or 48 (Geode / Stratavisor)
Geophone frequency14 Hz vertical-component
Shot interval5 to 10 ft depending on target depth
Maximum investigation depth100 to 150 ft (refraction)
Velocity range of interest1,500 to 15,000 fps
IBC Site Class correlationVs30 derived from P-wave velocity
Reporting standardASTM D5777-18 (refraction)

Associated technical services

01

Refraction Tomography for Bedrock Mapping

We deploy 230-foot spreads with overlapping shot points to build a continuous velocity model of the subsurface. The deliverable includes a color-contoured cross-section with rippability zones and interpreted depth to selected velocity horizons. This is the go-to method for commercial building pads, utility corridors, and road cuts where hard granite is expected.

02

High-Resolution Reflection for Deep Targets

When the target horizon exceeds 100 feet or when refraction energy cannot penetrate a velocity inversion, we switch to common-midpoint reflection profiling. This technique images stratigraphic layering and fault offsets down to 500 feet, making it suitable for groundwater basin studies and deep infrastructure planning near the Crow Creek drainage.

Regulatory framework

ASTM D5777-18 (seismic refraction), IBC 2024 / ASCE 7-22, ASTM D7128-18 (MASW), AASHTO R 22-09

Quick answers

How long does a typical seismic tomography survey take in the Cheyenne area?

Most single-line surveys are completed in one field day. The crew arrives at sunrise to lay out the geophone spread and set off shots, and by mid-afternoon the data acquisition is wrapped up. We deliver a preliminary velocity section within 48 hours so your design team can move forward without delay.

What is the cost range for a seismic refraction tomography survey here?

For a standard commercial building pad investigation in Cheyenne, the fee generally runs between US$2.930 and US$5.380 depending on the line length, number of shots, and whether we combine refraction with MASW for site classification. We provide a fixed-price proposal after reviewing the site geometry and target depth.

Can seismic methods work when the ground is frozen in winter?

Yes, and in fact frozen ground can improve coupling between the geophone spike and the soil, giving us cleaner first arrivals. The main winter challenge in Cheyenne is wind noise on the spread cable, which we manage with sandbags and by scheduling shots during the calmer morning hours.

How do you correlate seismic velocities to rippability?

We use the Caterpillar D9/D10 rippability chart calibrated against the P-wave velocity from the tomogram. Velocities below 4,000 fps are generally rippable, 4,000 to 7,000 fps is marginal depending on fracture spacing, and anything above 8,000 fps in the Sherman Granite requires blasting or hydraulic hammering.
